• Stand-alone station for closed-loop and open-loop control, optimizing and monitoring functions
• Customizable plain text for every parameter
• 12 DDC closed-loop control plants for heating and ventilation,

can be expanded with software objects

• PLC functions, free and as fixed macros (hardware objects)
• Software objects for increasing energy efficiency and energy optimization
• Communication
  • –  Via TCP/IP, Ethernet cable (min. Cat5, 10/100 Mbit) to enable use

of the existing infrastructure

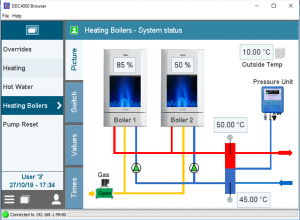

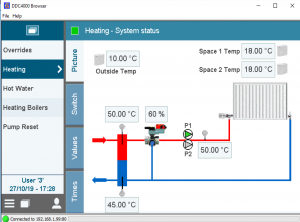

• • –  Built-in remote control via PC with browser without additional software or mobile end devices
  • –  Native BACnet in accordance with DIN EN ISO 16484-5, BACnet IP and BACnet MS/TP
  • –  Up to 99 DDC4000 automation stations with bidirectional data exchange
  •
  • 2 buses (CAN-based), configurable for switch cabinet bus or fieldbus for connecting fieldbus modules (FBM/ FBU or RBW4xxx) or switch cabinet bus modules BMD/BMA or SBM
• • Error message memory, event logging with date and time, incoming and outgoing messages are saved
  • Forwards messages to GSM-SMS and e-mail.
  • Trend value memory for max. 100.000 trend points.
  • Configuration using modern, effective object structure, considerably reducing project planning time.
  • Embedded Linux operating system for proven, stable use
  • Constant system monitoring of the bus communication and all connected DDC components, bidirectional data

  exchange possible.

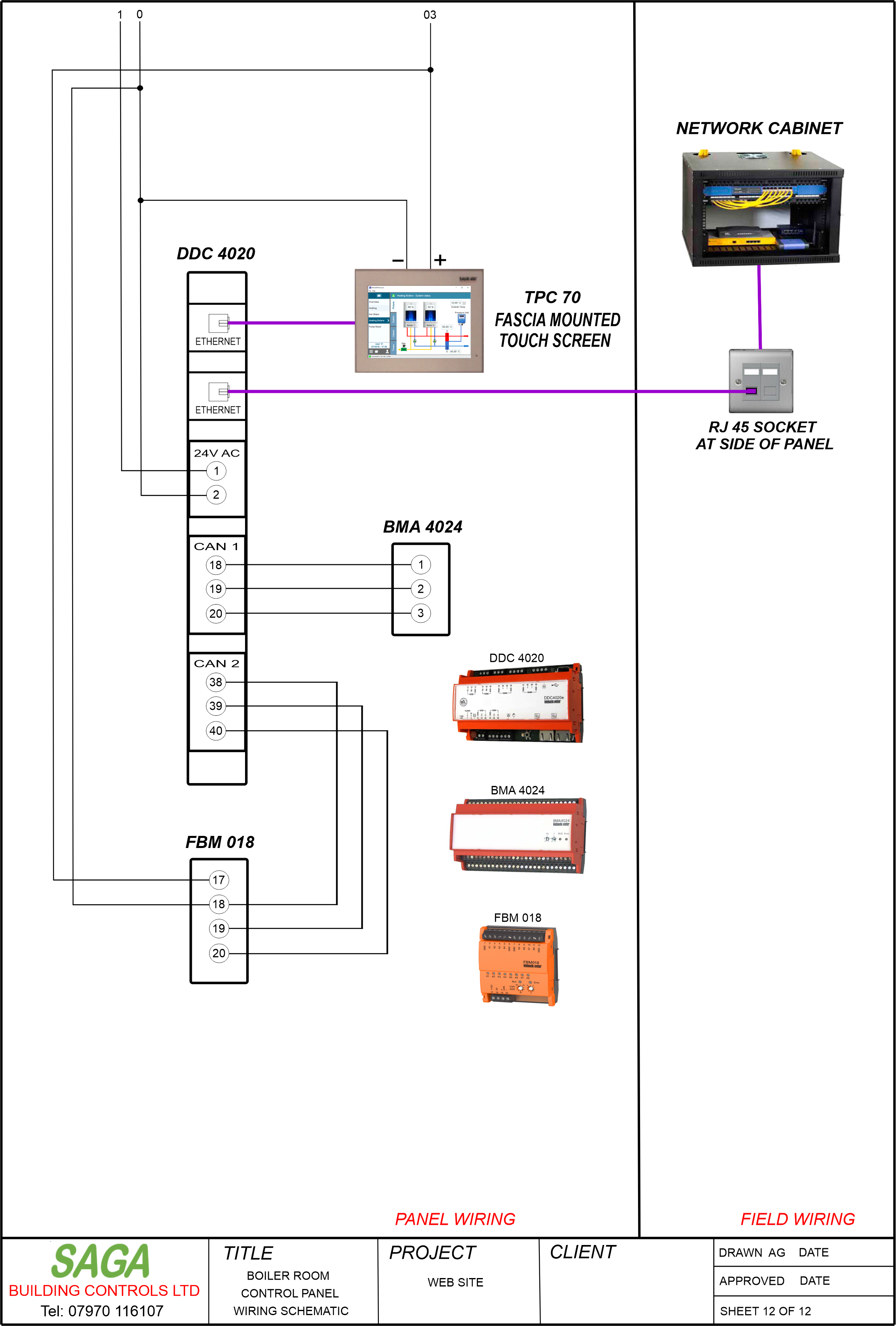

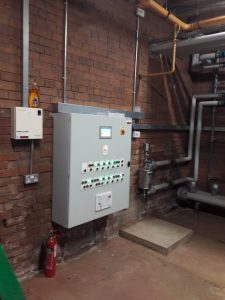

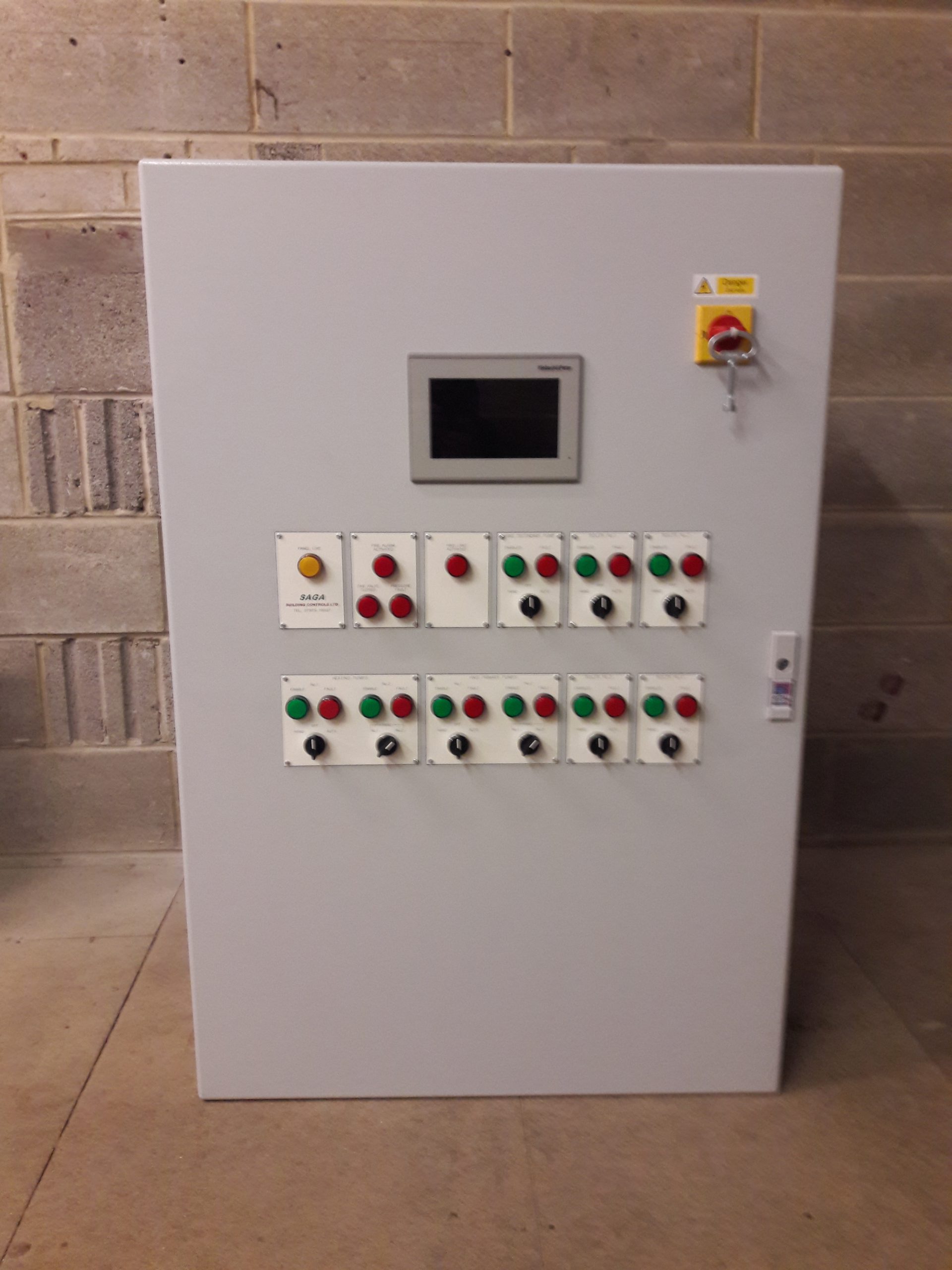

The TPC70 is a remote display and operator panel. It has a color TFT touchscreen with a screen size of 7′′ / 17,8 cm.

The TPC70 can operate a DDC4020e or DDC4040e automation station.

The TPC70 is equipped with an integrated Ethernet interface for communication.

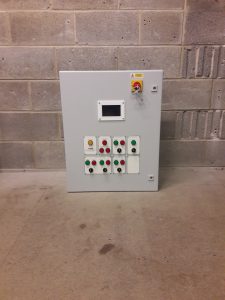

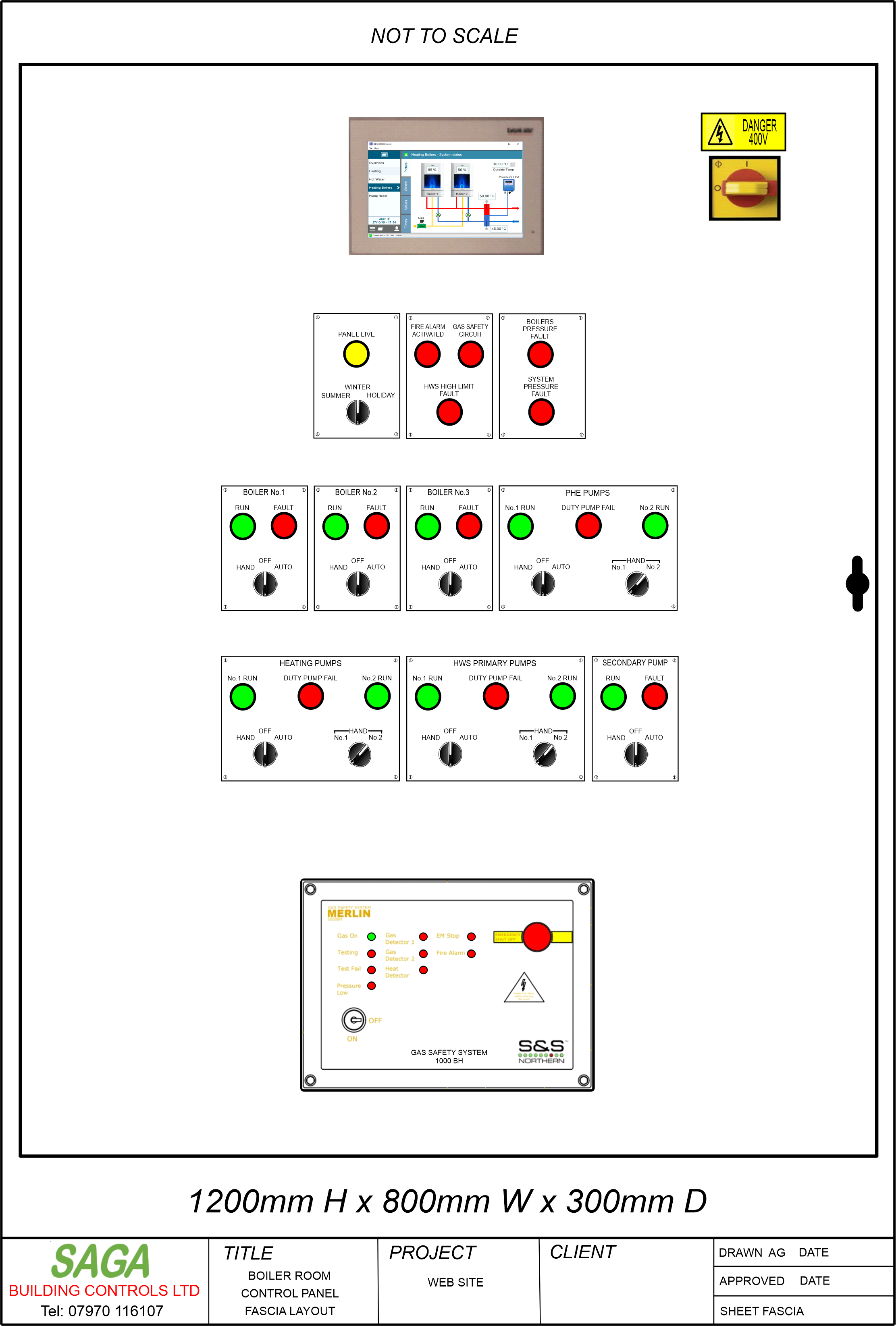

The TPC70 is suitable for installation in the front panel.

Configuration is available in two languages (German, English).

User guide is available in 16 languages (Bulgarian, Czech, Dutch, English, French, German, Hungarian, Italian, Lithu- anian, Latvian, Polish, Romanian, Russian, Spanish, Swedish and Chinese).

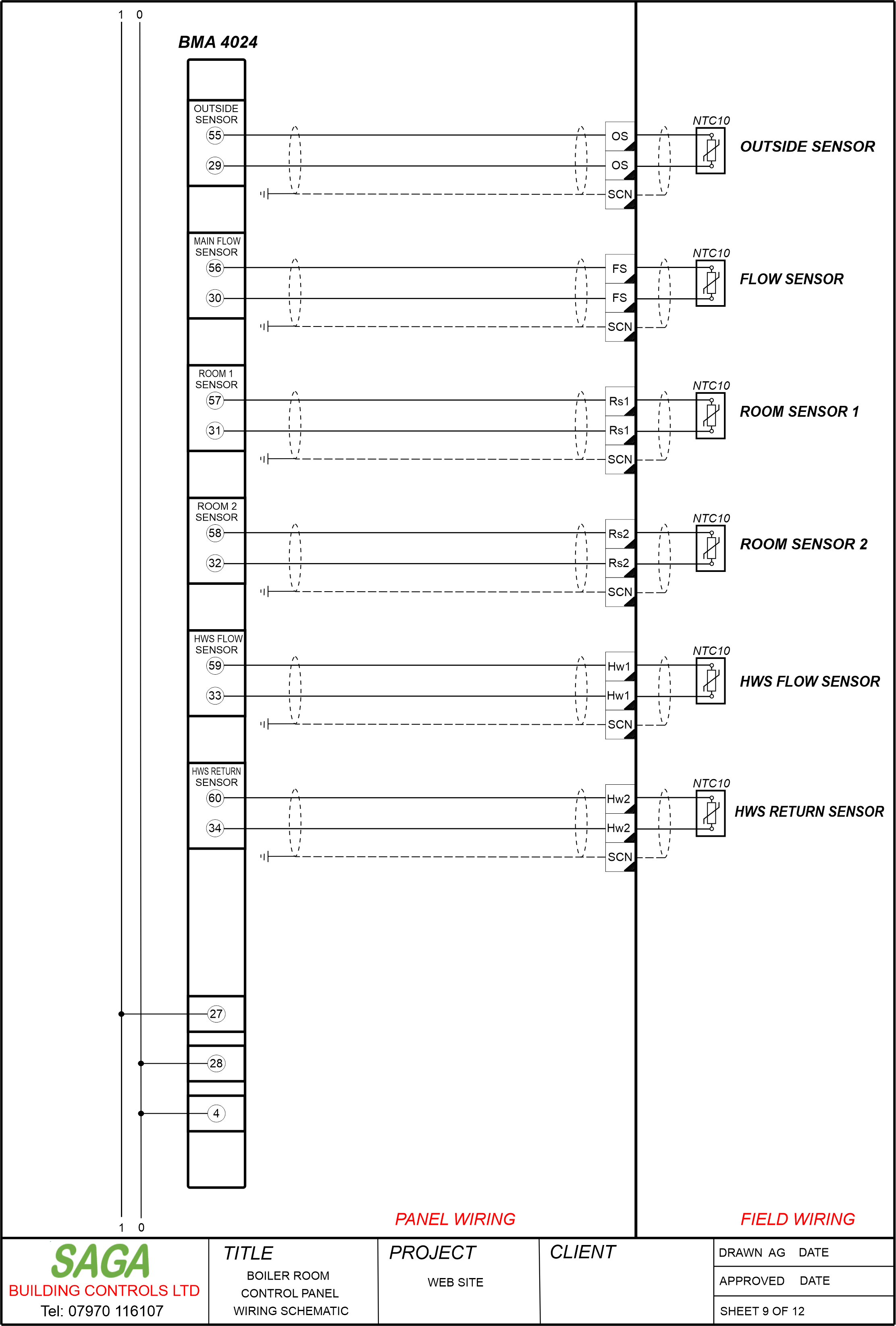

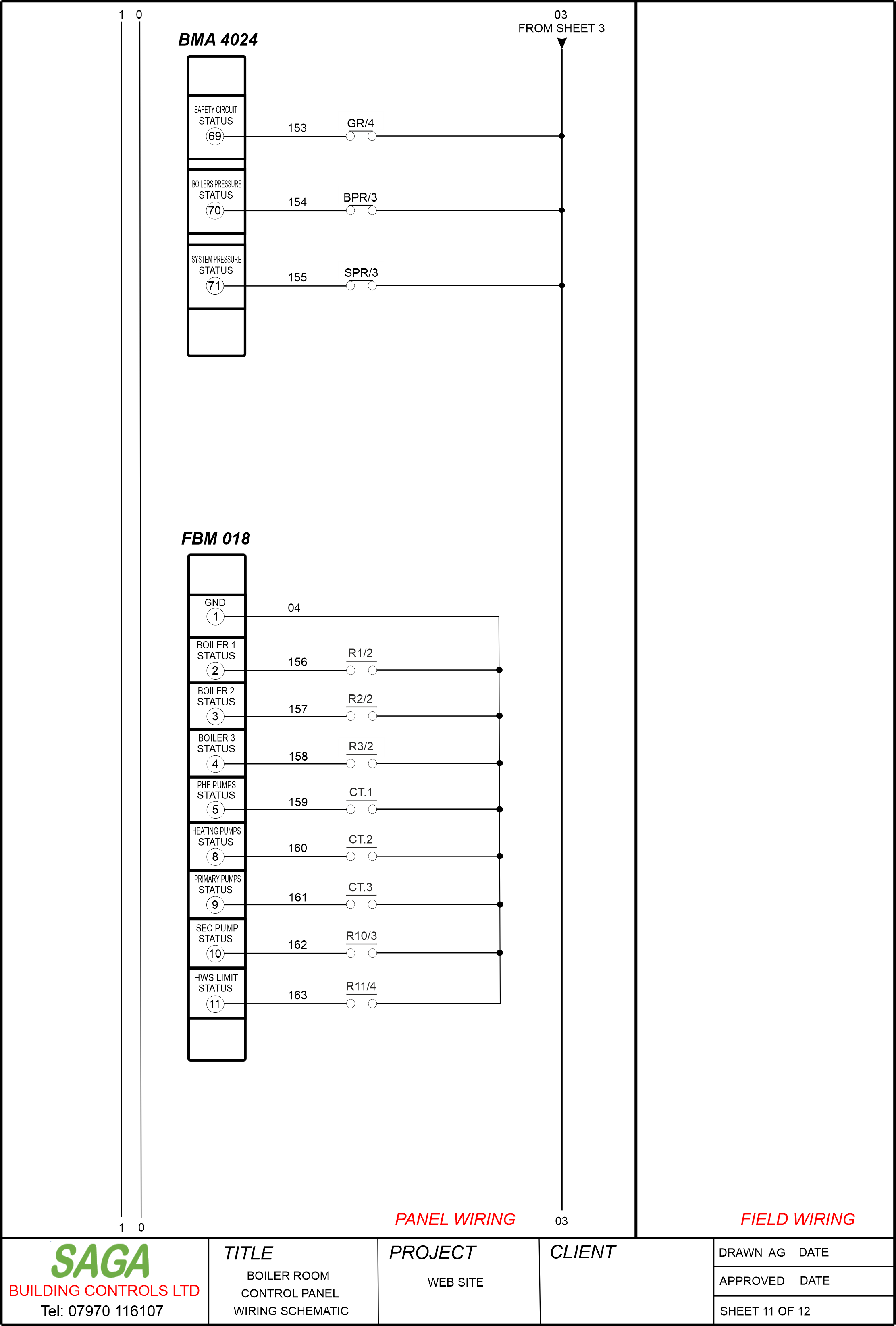

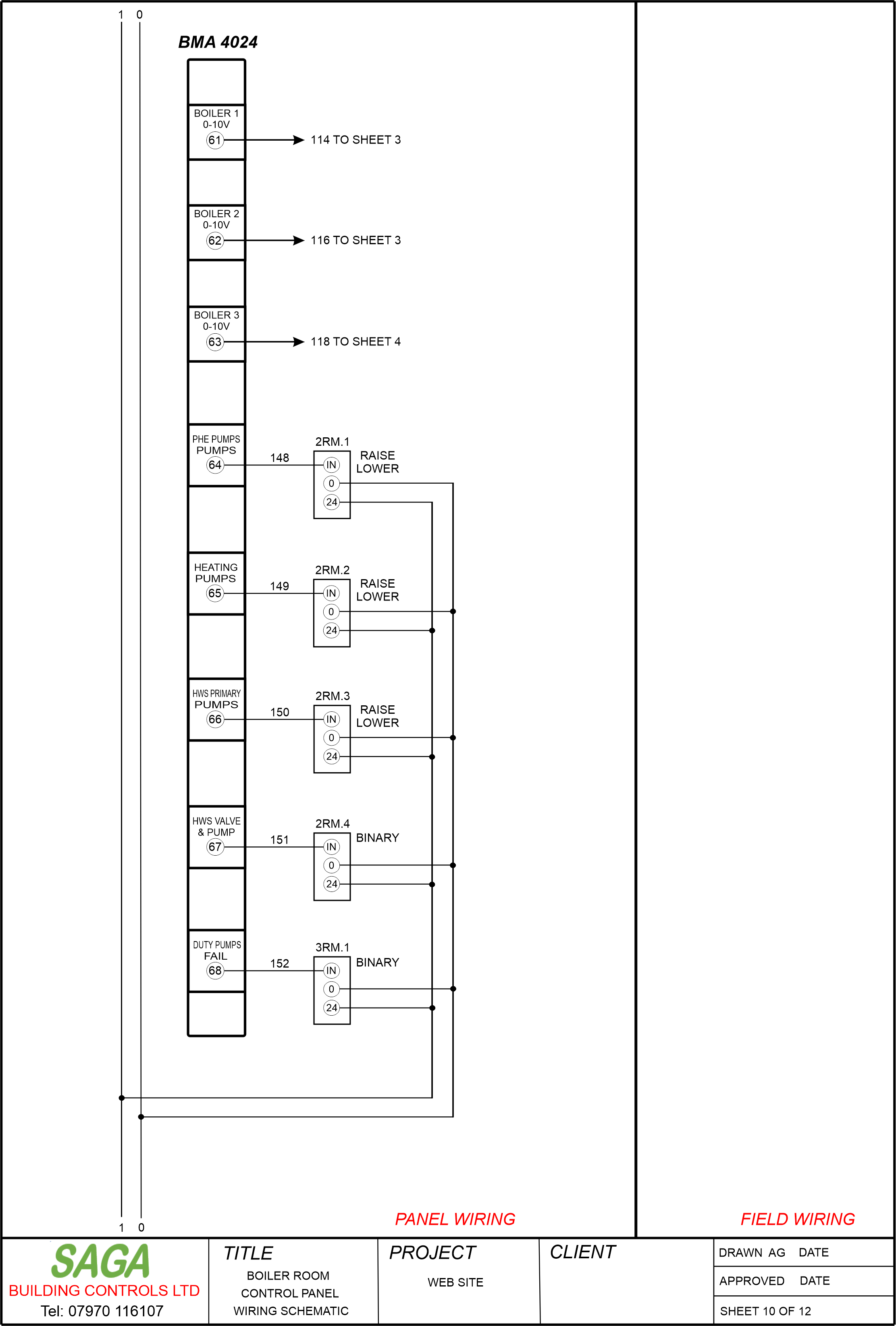

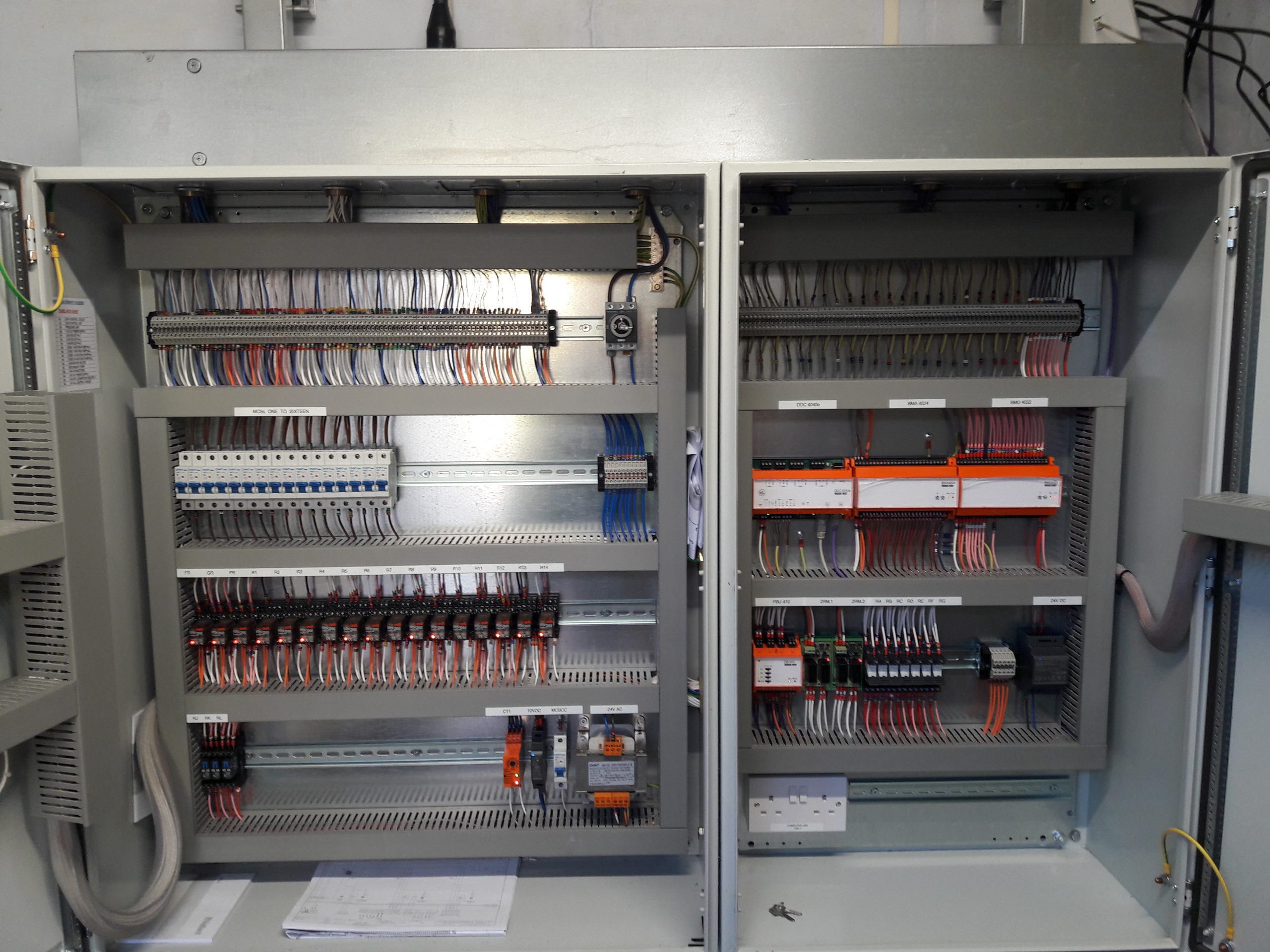

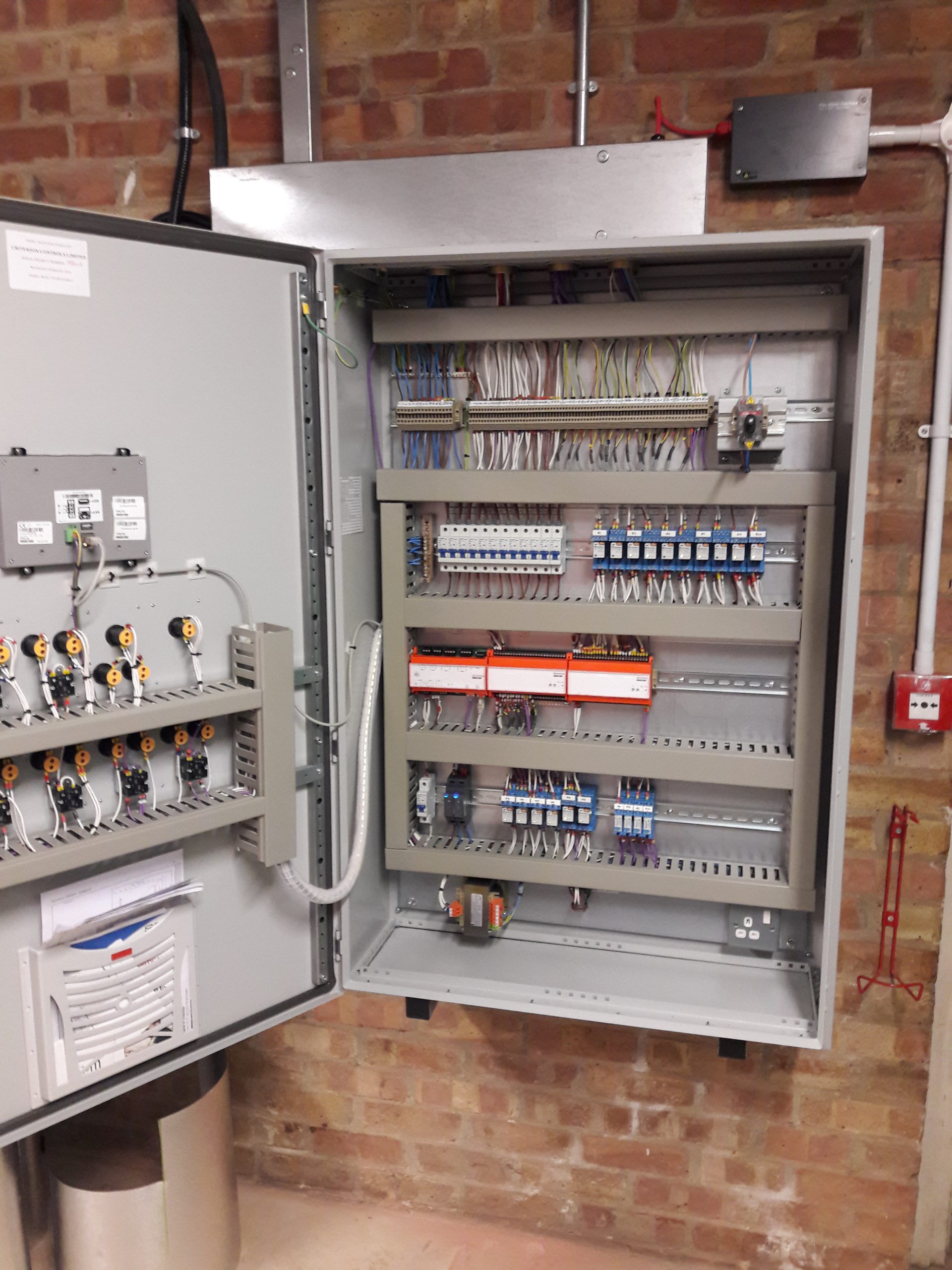

The input/output module BMA4024 with 24 analog inputs or outputs receives DDC4000 automation and control system analog signals and activates analog control functions.

The function can be individually selected as an input or output for each of the 24 connections by means of DDC configuration.

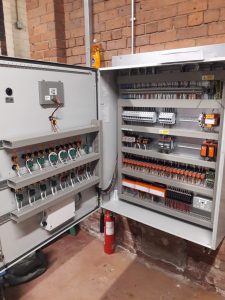

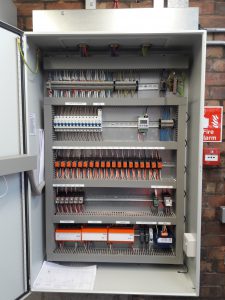

The input/output module BMD4032 with 32 digital inputs or outputs receives System 4000 binary signals and activates binary control functions.

The function of the 32 inputs or outputs can be individ- ually software configured and defined for each connection.

The first 8 inputs can be used as pulse counter inputs up to 80 Hz.

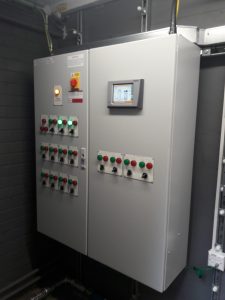

• Standalone station with operator function for closed-loop and open-loop control, optimizing and monitoring functions
• Built-in touchscreen for intuitive, user-defined operation via plant structures which can be individually created
• Customizable plain text for every parameter

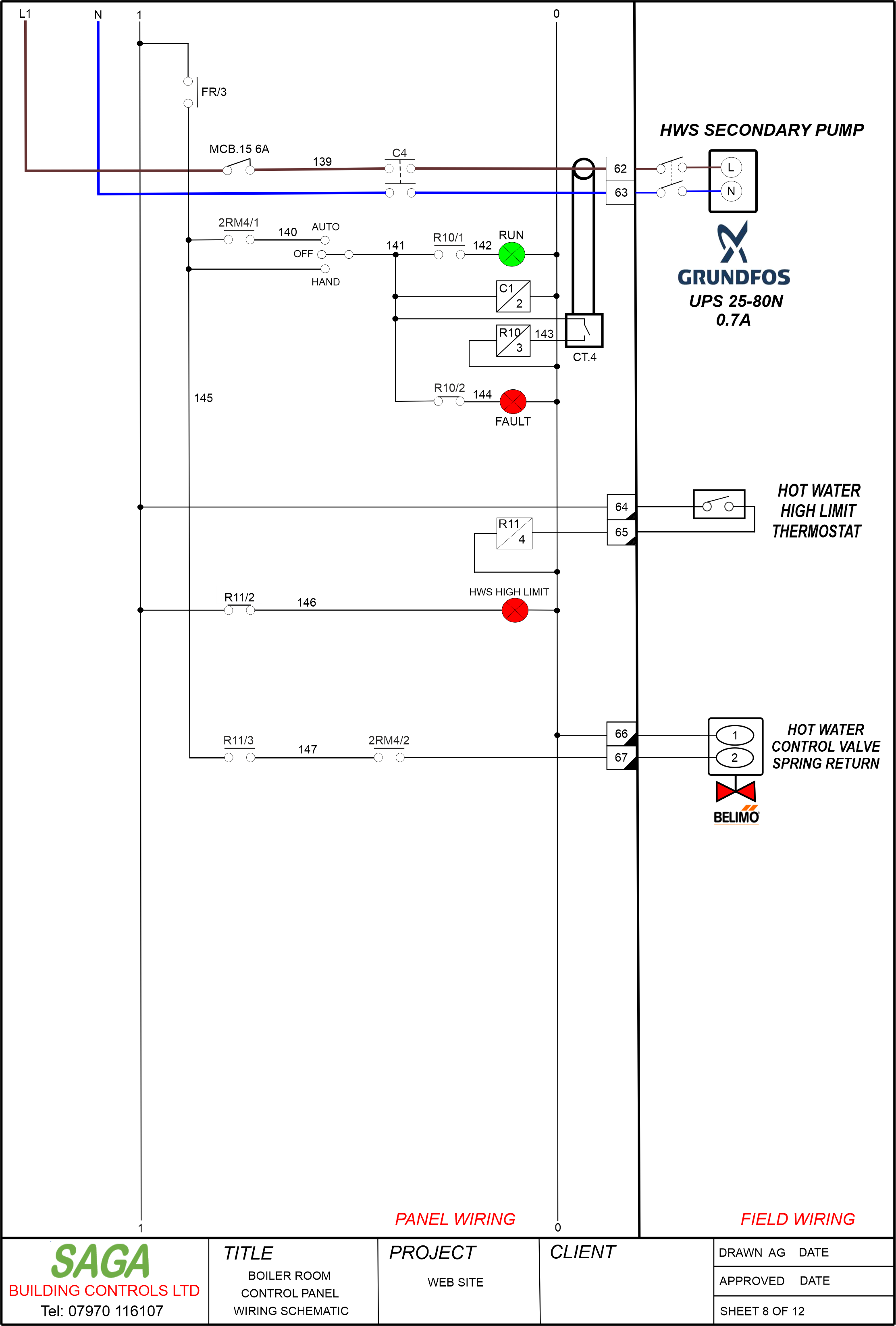

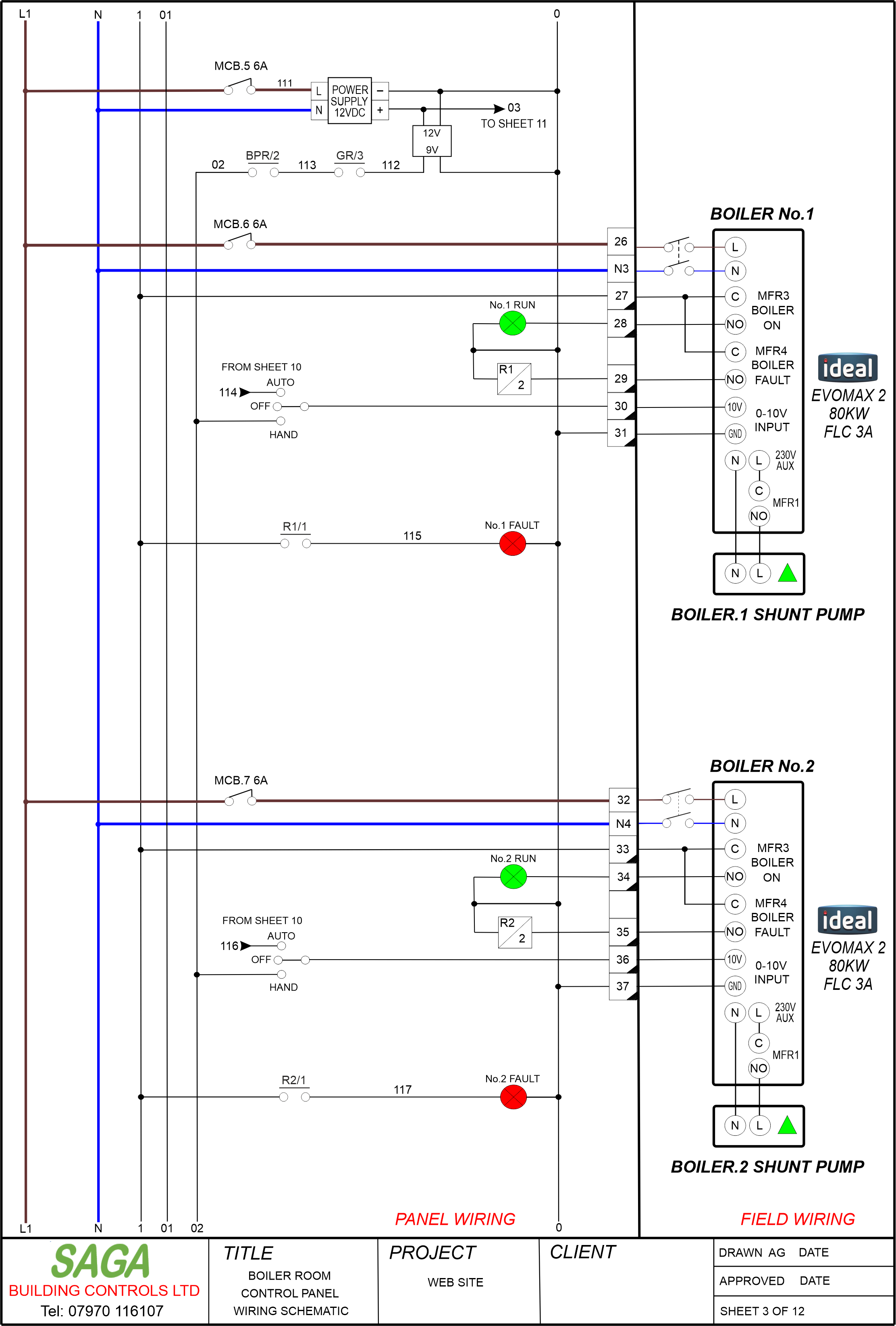

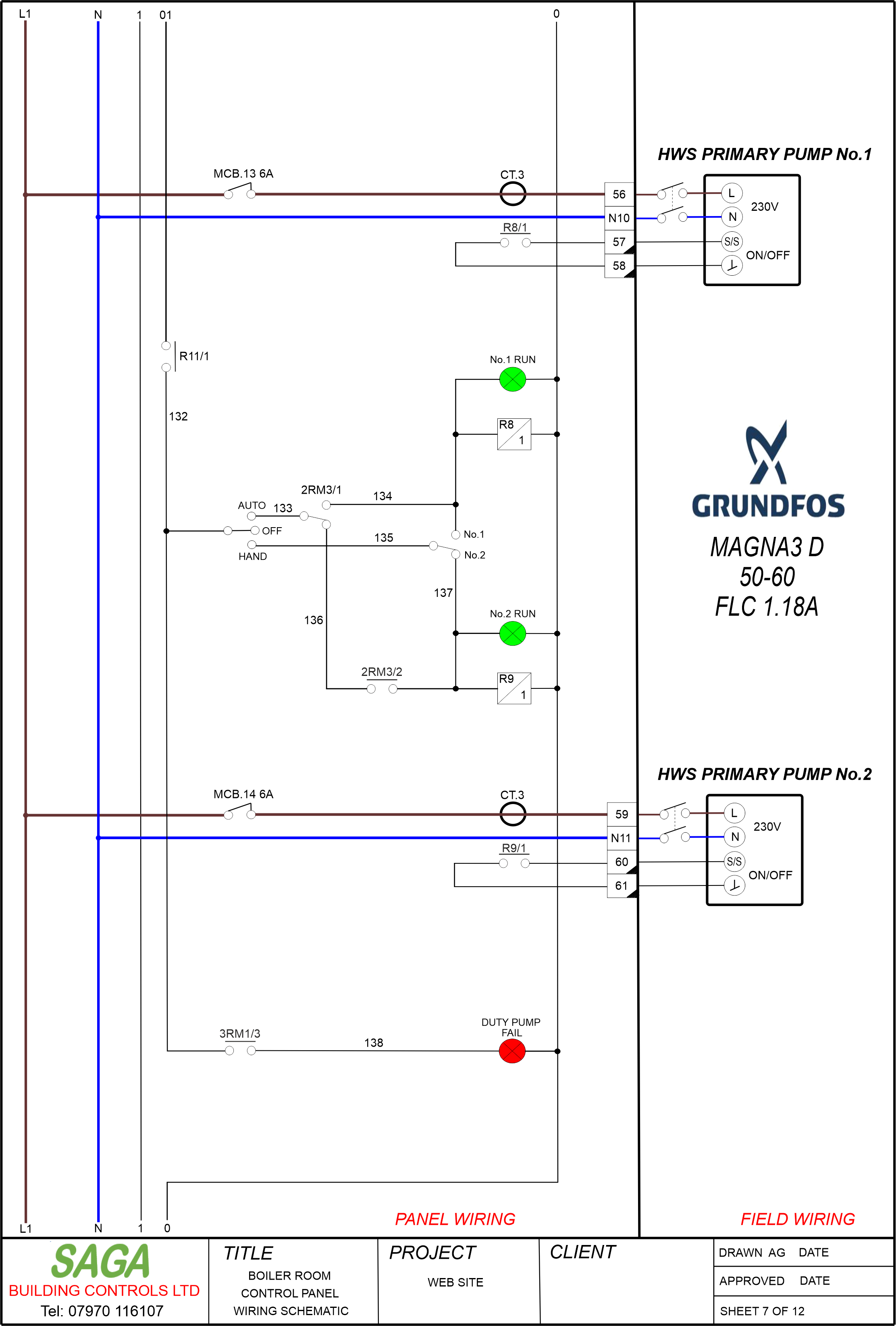

• Direct connection of the input and output signals
• 4 DDC closed-loop control plants for heating and ventilation, can be expanded with software objects
• PLC functions, free and as fixed macros (hardware objects)
• Software objects for increasing energy efficiency and energy optimization
• Communication

– Via TCP/IP, Ethernet cable (min. Cat5, 10/100 Mbit) to enable use of the existing infrastructure

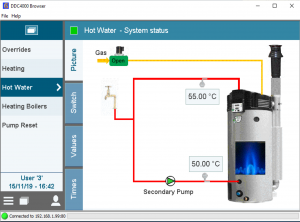

–  Built-in remote control via PC with browser without additional software or mobile end devices

–  Native BACnet in accordance with DIN EN ISO 16484-5, BACnet IP and BACnet MS/TP

–  Up to 99 DDC4000 automation stations with bidirectional data exchange

–  Access to the entire DDC4000 automation system from every connected automation station (remote control) without additional devices

•

• 2 buses (CAN-based), configurable for switch cabinet bus or fieldbus for connecting up to 63 fieldbus modules (FBM, FBU, FBR or DDC110) or up to 16 switch cabinet bus modules (BMD, BMA or SBM)
• Error message memory, event logging with date and time, incoming and outgoing messages are saved
• Forwards messages to printers, fax, GSM-SMS and e-mail.
• Trend value memory for max. 50.000 trend points.
• Configuration using modern, effective object structure, considerably reducing project planning time.
• Embedded Linux operating system for proven, stable use
• Backward-compatible with Kieback&Peter DDC3000 automation system
• Constant system monitoring of the bus communication and all connected DDC components, bidirectional data exchange possible.

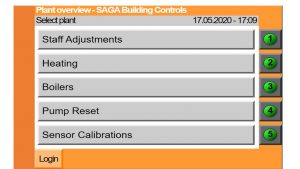

DDC420 is a controller for closed-loop and open-loop control, monitoring and optimizing heating, ventilation and air conditioning systems.

The DDC420 also has a fieldbus to allow for flexible enhancement with input and output modules, as well as with room control modules.

With an integrated Ethernet interface, the DDC420 provides a Web server to facilitate visualization, remote control and data backups via a web browser without the need for additional software.

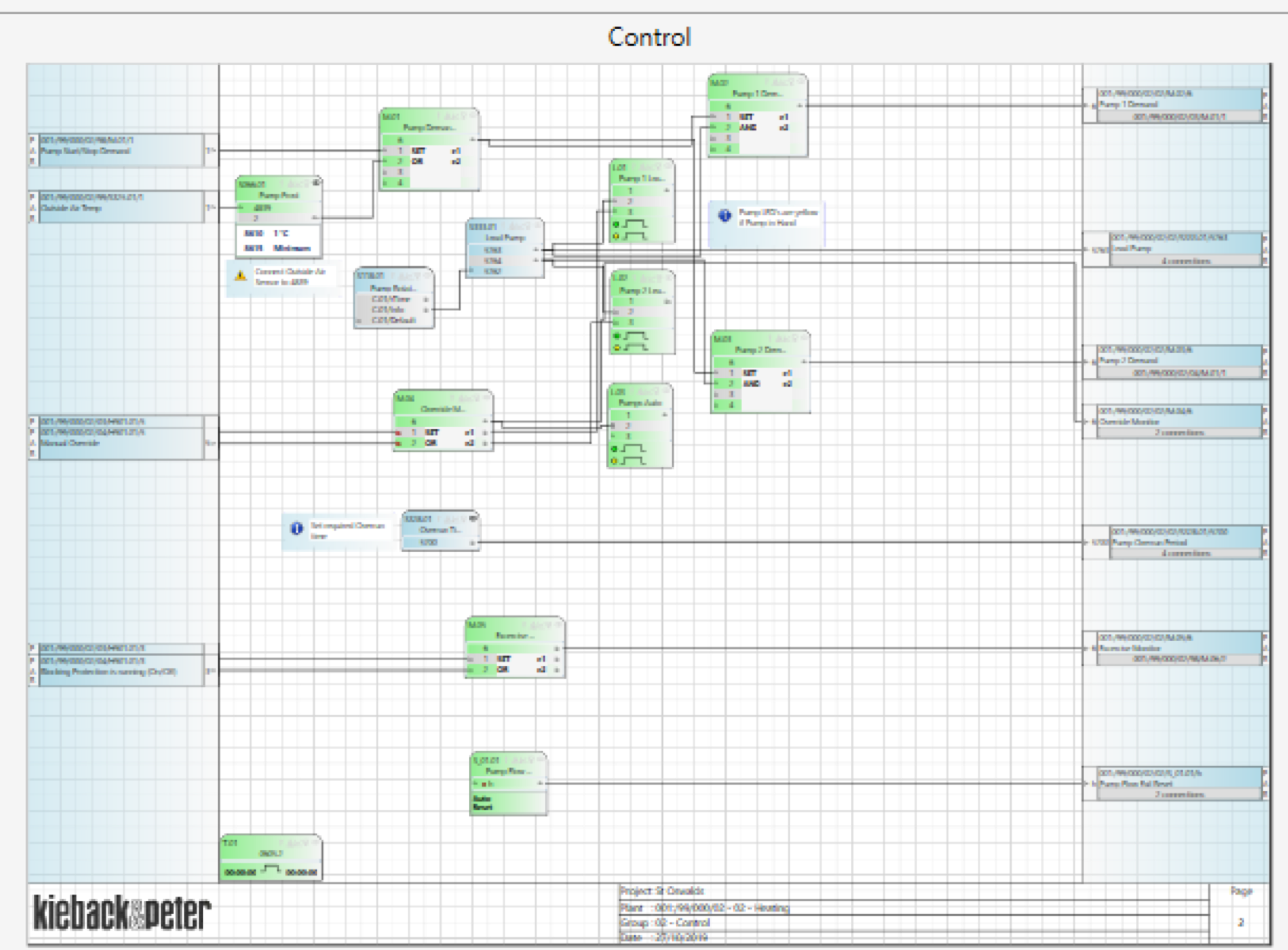

Fast, simple configuration, management and commissioning using the Designer project planning tool: Plant macros are set to configure the DDC420 completely, set the associated DDC software objects, configure the parameters and assign the input and output signals.

Additional main features of the DDC420:

• Native BACnet® in accordance with DIN EN ISO 16484-5 (BACnet® server functionality) BACnet IP and BACnet MS/TP facilitates communication with the BMS by Ethernet or modem.
• Illuminated graphic display
• Control panel with selection knob and function keys
• Weekly schedule and annual schedule
• Trend data can be saved and visualized
• Different, password-protected operating levels for displaying and changing plant values; customer-specific plain texts for every parameter
• User interface available in 12 languages (Czech, Dutch, English, French, German, Hungarian, Italian, Latvian, Polish, Russian, Spanish and Swedish)
• Three closed-loop control circuits for heating or two for ventilation, which can be extended by hardware and software objects
• Malfunction message logging with time and date
